Trimble GCS900 for Soil Compactors

Compaction Control for Soil Compactors

Trimble Compaction Control Systems help you roll a more efficient pattern so you can reach target passes and density faster. Intelligent compaction indeed.

Robust CCS900

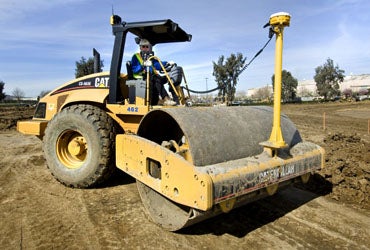

The Trimble CCS900 Compaction Control System helps you accurately control the compaction process, while reducing unnecessary passes that result in over compaction.

The early detection of unsuitable materials and hidden obstructions can be excavated and re-graded or compacted prior to more costly phases of the construction process. Compaction results are recorded and stored for analysis and generation of documentation deliverables at the end of the project.

Easy CCSFLEX

The Trimble CCSFlex Compaction Control System for Soil Compactors is the ideal solution for temporary installations or rented machines. The CCSFlex "in a case" system provides pass count mapping for soil compactors and is easy-to-use; you can operate without a GPS base station and without 3D design data.

Compaction Monitoring

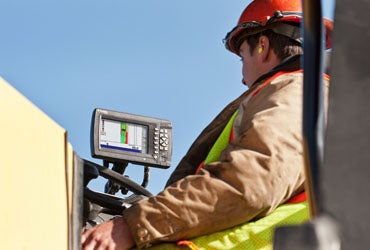

Supervisors and quality managers can monitor compaction activities using the optional in-cab printer or the web-based VisionLink fleet, asset and productivity solution from Trimble.

VisionLink

The VisionLink 3D Project Monitoring subscription can be used to:

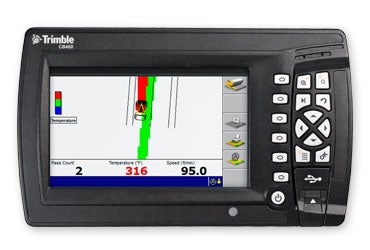

  • Continuously monitor pass counts and Compaction Meter Values (CMV) over the entire area and on all material layers
  • Improve testing success, reduce rework and lower ongoing maintenance costs
  • Reduce over-compaction to optimize fuel use and machine time
  • Ensure uniform lift, consistent pass counts and target compaction meter values to increase the surface quality and operational life
  • Resource Center

Applications

You can install CCS900 to improve your soil compaction operations on any project where the specification calls for a target density or pass count, including:

  • Highway and railway construction
  • Residential pads
  • Commercial site construction
  • Parking lots
  • Sports fields

System Configurations

The Trimble CCS900 Compaction Control System is the premium system for improving soil compaction operations and rolling a more efficient surface.  It is available in the following configurations:

Single GNSS

Measures the position and slope of the blade and compares that to design data for rough grading and mass excavation on complex design surfaces

Dual GNSS

Measures the exact position, cross slope and heading of the blade for rough grading and mass excavation on steep slopes and complex design surfaces

Universal Total Stations

Total station-based system for high accuracy lift and layer control, material placement and monitoring, or for jobs where GNSS is not the ideal solution because of overhead obstructions

Intelligent Compaction at CAT Demonstration Days
