Trimble GCS900 for Compact Machines

3D Grade Control

The Trimble GCS900 3D Grade Control System can be installed on compact machines to put the site plan - design surfaces, grades and alignments - inside the cab.

Grading

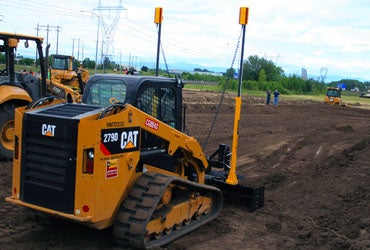

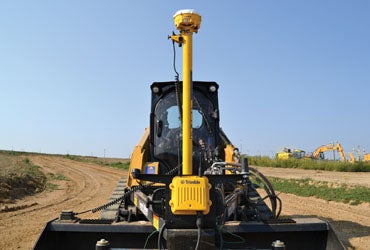

  • Measure the position and blade slope with the single GNSS antenna configuration
  • Measure the exact position, very accurate cross slope and the heading of the blade with dual GNSS


Finished Grade

  • Achieve finished grade to millimeter accuracy with fewer passes
  • Place finished grade materials more accurately and in a shorter time period, keeping material costs to a minimum and realizing better profits

2D Grade Control

The Trimble 2D GCS900 Grade Control System for compact machines is an excellent first investment for contractors new to construction technology.

Grading

  • Measure the lift and tilt of the blade with a single laser and laser receiver
  • Measure the slope of the blade by adding another laser receiver or a slope sensor
  • Get to grade more accurately and quickly with in-cab elevation and slope guidance
  • Upgrade to a 3D grade control system as your organization grows


Finished Grade

  • Achieve tight tolerances and a smooth finished grade with precise vertical guidance.
  • Calculate the cross-slope of the blade using two angle sensors and a rotation sensor
  • Add a laser receiver or a sonic tracer to measure elevation
  • Trace stringline, previous pass, or curb and gutter with a sonic tracer



Laser Grade Control

Compact machines are the work horses of many construction sites. As you find more uses for them, Trimble continues to refine our offerings into systems that work just as hard as you do, with a price to fit your budget.

Here are just some of the benefits you will gain by using our compact machine solutions on your skid steers, backhoe loaders and mini-excavators:



Increased Productivity

  • Now you can use your compact machines for more specialized and finished grade applications



Reduced Labor and Downtime

  • You don’t need to wait for grade checks because you can immediately see when you’re on grade
  • There’s no need to get out of the machine to check grade yourself

Reduced Rework

  • When you move the material correctly the first time, there’s no need to spend time doing rework
SITECH WA- Trimble GCS900 on Compact Machine
