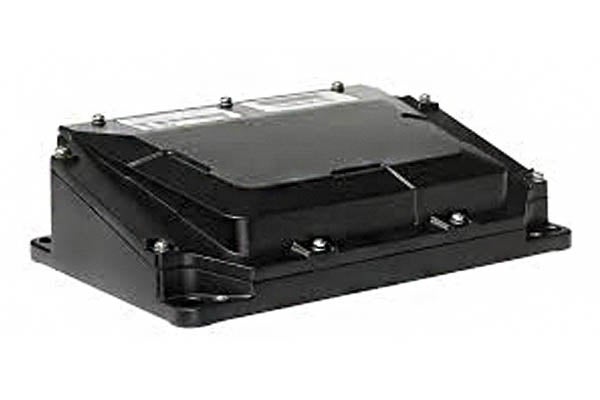

Trimble EC520 Electronic Controller

Trimble EC520 Electronic Controller is a rugged platform purpose built for easy integration of machine control and guidance. It is compact and simple enough to integrate entry level machine control and guidance out of the factory with the factory display, but powerful enough to provide a seamless upgrade path to full 3D grade control applications and graphical displays through factory or aftermarket channels.

Key Features and Benefits:

  • High performance real-time, Linux control platform for Trimble Grade Control Servers
  • Options available for CAN, Ethernet or Wi-Fi display interfaces to match the UI experience with the desired application level – 1D, 2D, or 3D
  • Integrated inertial measurement unit (IMU) body sensor with 6 degrees of freedom
  • Optional integrated Wi-Fi 802.11b/g/n 2.4 GHz for on machine wireless connectivity to displays, laptops, hot spots, or mobile devices
  • Optional 5dbi antenna for 300m (980 ft) range connections to Wi-Fi local base or other machines
  • 3 CAN ports for Machine CAN, HMI devices and grade control senor connectivity
  • 2 Ethernet ports for displays and radios
  • 1 RS232 port for guidance light-bars and 3rd party radios
  • Grade control subsystem power management
  • Reliable and rugged for direct chassis mounting
